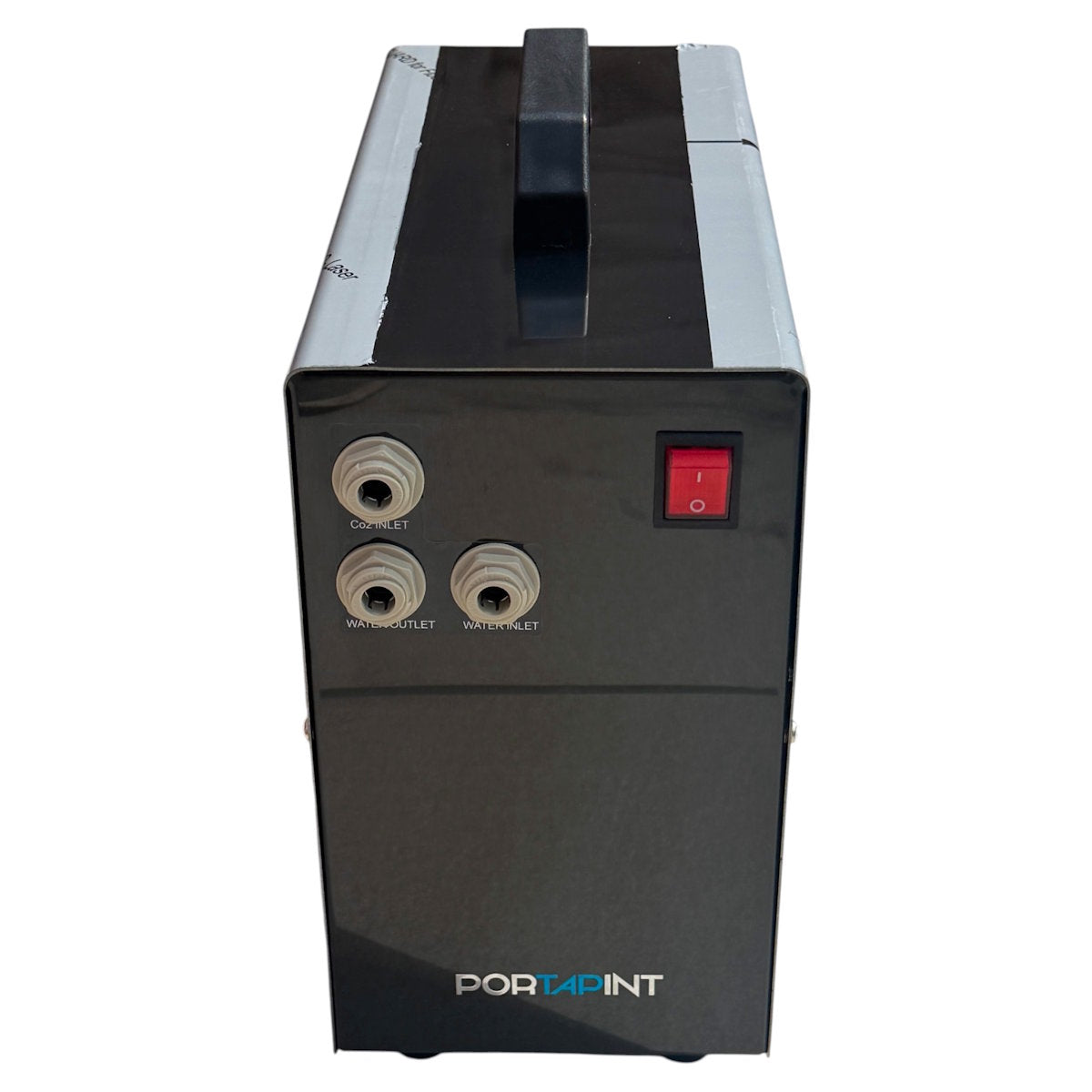

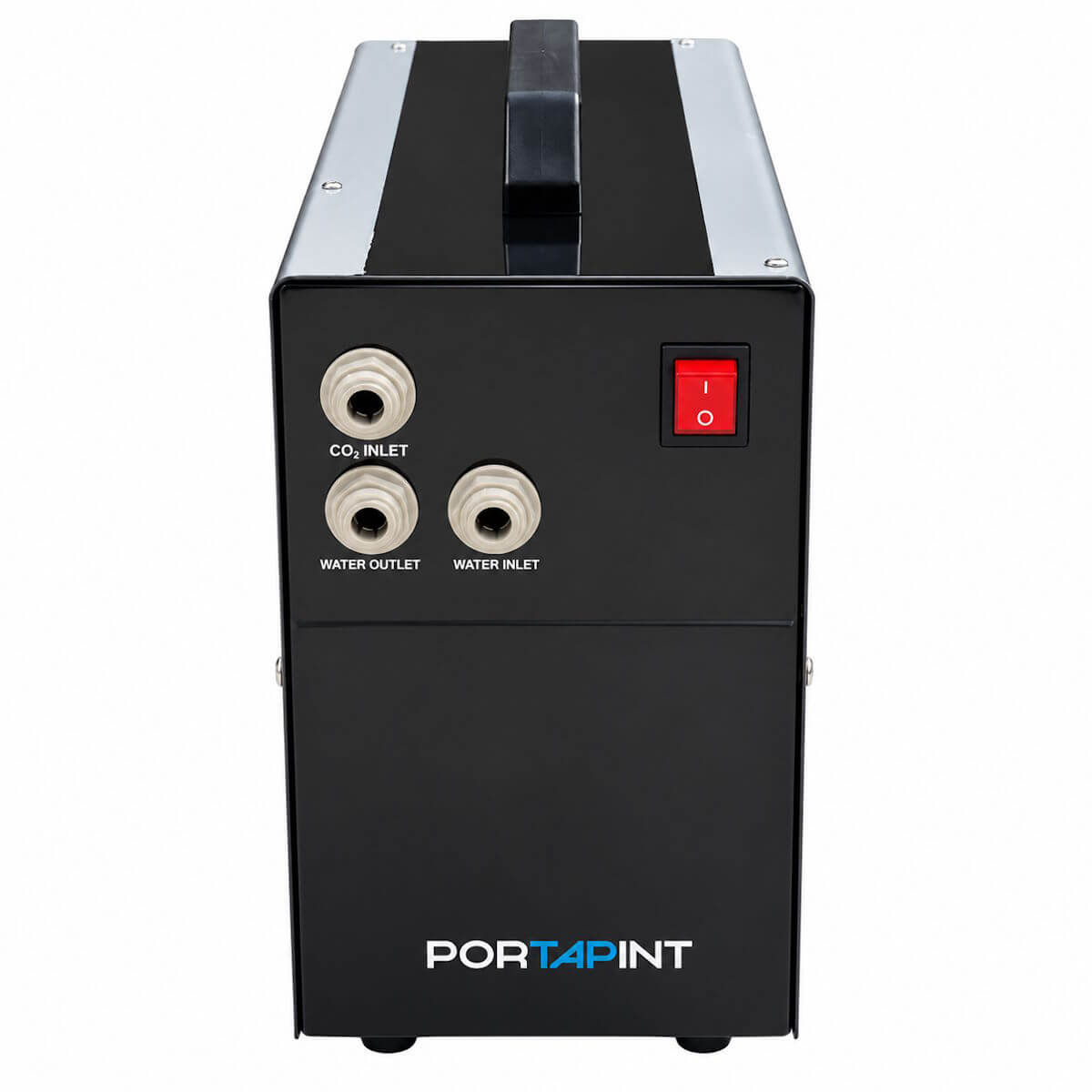

PortaPint Soda Water Carbonator – Sparkling Water for PortaPint Dispensers
The PortaPint Soda Water Carbonator allows you to dispense freshly carbonated, chilled sparkling water directly through a compatible twin-tap PortaPint dispenser. Ideal for bars, events, mobile bars and hospitality venues, it provides a convenient way to add soda water or sparkling water on tap to your drinks dispense setup.
Simply connect a suitable filtered mains water supply to the carbonator, then connect the carbonated water outlet to the product inlet of your PortaPint dispenser. The PortaPint then chills the carbonated water ready for dispensing through the tap.
The carbonator requires a suitable high-pressure beverage CO₂ supply to carbonate the incoming water effectively.
Key Features
-
Designed for PortaPint Dispensers – Compatible with twin-tap PortaPint models
-
Soda Water on Tap – Produce carbonated water for dispensing through your PortaPint
-
Chilled Sparkling Water – The PortaPint chills the carbonated water before dispense
-
Up to 60 Litres Per Hour – Maximum flow rate of 60L/hr
-
Filtered Water Connection – Connect to a suitable filtered water supply
-
High-Pressure CO₂ Carbonation – Requires a suitable beverage CO₂ regulator
-
Compact Design – Easy to position alongside your existing dispense equipment
-

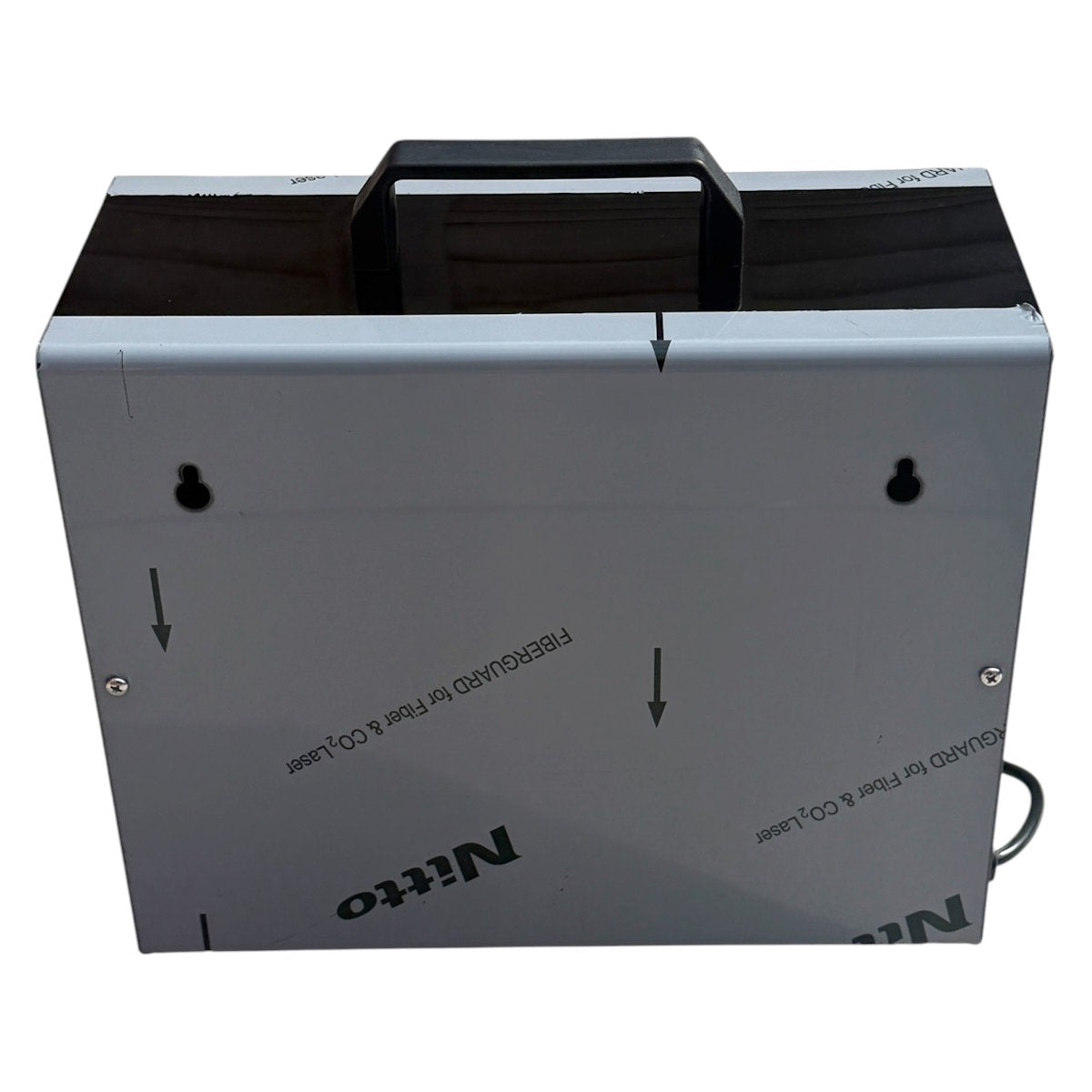

Wall Mountable – Can be wall mounted where required
-
Commercial Applications – Ideal for bars, restaurants, events and mobile drinks service
How Does the PortaPint Soda Water Carbonator Work?
The PortaPint Soda Water Carbonator sits between your incoming water supply and the PortaPint dispenser.
The basic setup is:
Filtered Water → Soda Water Carbonator → PortaPint Dispenser → Dispense Tap
A CO₂ supply is connected separately to the gas inlet of the carbonator. The carbonator introduces CO₂ into the water before sending the carbonated water to the PortaPint for chilling and dispensing.
Good incoming water pressure is important for reliable carbonator operation and consistent soda water production.
CO₂ Pressure Requirements
The carbonator requires a high-pressure CO₂ supply, typically around 80–100 PSI, to achieve effective carbonation.
A suitable high-pressure beverage CO₂ regulator must be used. Standard beer dispense regulators may not provide the pressure required for a soda water carbonator.
Do not use a welding or industrial gas regulator. The regulator must be designed and rated for beverage dispense applications and suitable for the required operating pressure.
Compatible with Twin-Tap PortaPint Dispensers
The PortaPint Soda Water Carbonator is compatible with twin-tap PortaPint dispensers, allowing one dispense point to be configured for chilled carbonated water where required.
This makes it particularly useful for mobile bars and events where soda water is needed for:
- Spirits and mixers
- Cocktails
- Spritz serves
- Sparkling water
- Other mixed drinks requiring soda water
Technical Specifications
Product: PortaPint Soda Water Carbonator
Maximum Flow Rate: 60 litres per hour
CO₂ Operating Pressure: Typically 80–100 PSI
Power: 120W
Current: 3.5A
Voltage: 220–240V / 50Hz
Length: 330mm
Height: 280mm
Width: 160mm
Installation: Freestanding or wall mountable
Compatibility: Twin-tap PortaPint dispensers
Add Soda Water to Your PortaPint Dispenser
The PortaPint Soda Water Carbonator provides a compact solution for adding freshly carbonated water to a PortaPint drinks dispense system.
Connect filtered water and a correctly regulated beverage-grade CO₂ supply to the carbonator, then feed the carbonated water into your PortaPint to produce chilled soda water on tap.
Ideal for professional bars, mobile bars, festivals, events and other hospitality applications using PortaPint dispensers.
